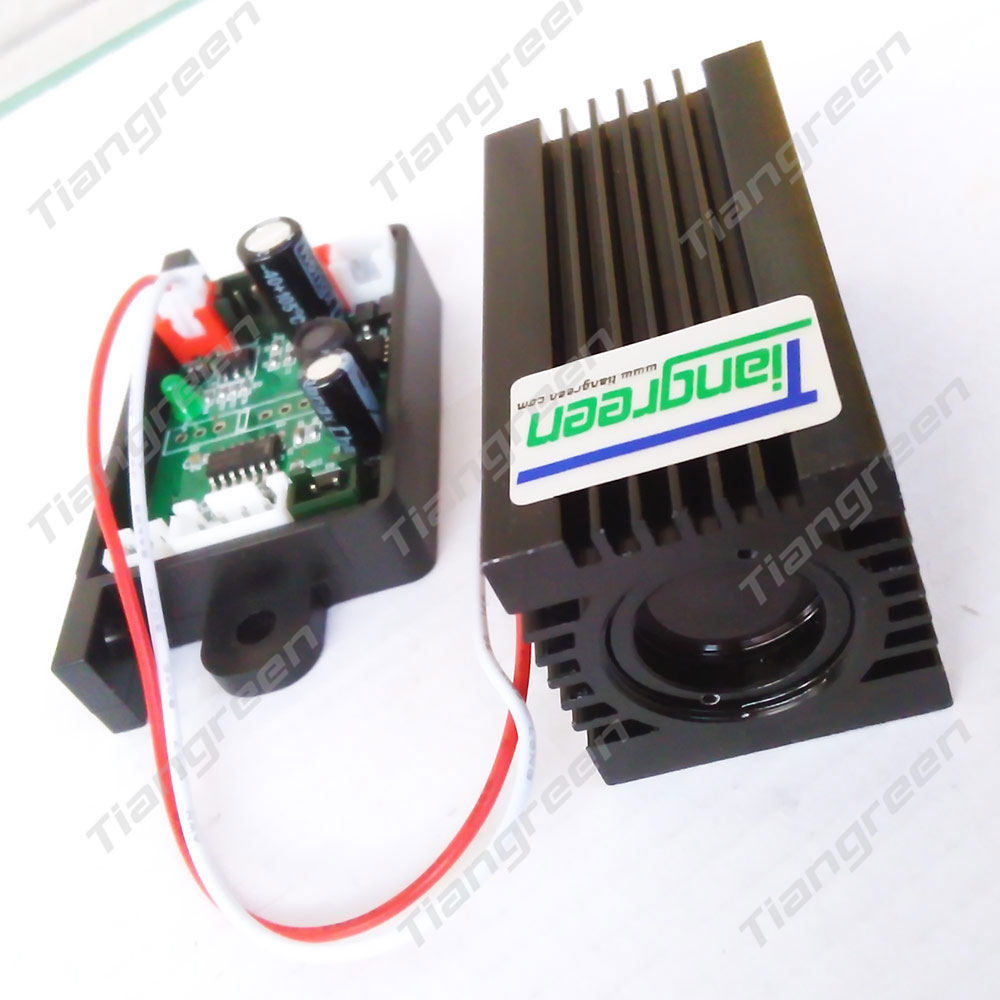

12V 150mw 650nm Fat Beam Laser Module Red with TTL Driver with Fan

Specifications:

1,Wavelength:650nm~660nm

2,Output Power:150mW

3,Working Voltage:AC 10V~12V

4,Working current:200mA

5,TTL:Yes,0-5V 0-25KHz

6,Laser Shape:Fat Dot/Fat Beam

7,Beam diameter:8~12mm

8,Material:Metal

9,Size:

Laser Module:30*30*50mm;

Laser Module+Fan:30*30*64mm;

Driver board:72*40*29mm;
