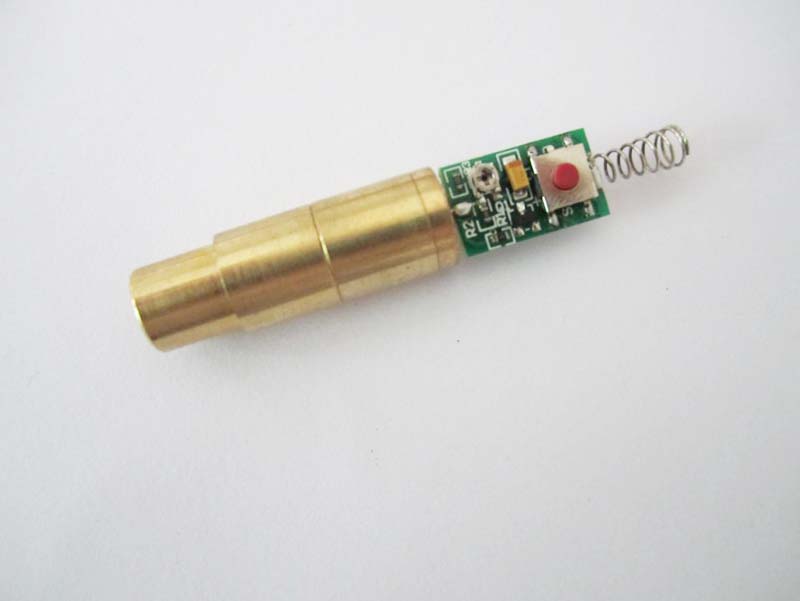

532nm 200mW Green Laser Moudle DIY Laser Pen 12V with Driver Board
Item Description:
|
Wavelength: |
532nm |
|
Power output: |
200mW |
|
Working Current: |
<360mA at 3.0V-4.3V input |
|
Working Temperature: |
+10dgC-+40dgC |
|
Electronical Pole: |
Copper burl to"+" and Spring for "- |
|
Storage Temperature: |
+10dgC-+50dgC |
|
Lifepan (under normal operation) |
>5000hours |
|
Size: |
12mmx23mm+32mm(driver) |
*Standard DIY acessories for pen or torch style Laser Pointer.
*Add a host, assembly laser pointer pen.
*Driver Board reverse protection design.
*Battery for AAA 3.0-4.3V input .
*Due to high power output, if you not add the heatsink,Recommend the use of time <5 minutes each time.
*High-cost high-quality crystal and laser diodes. We don't sell inferior products.
Standard DIY acessories for pen or torch style Laser Pointer.
Add a host, assembly laser pointer pen.
Driver Board: Reverse protection design.
Battery for AAA2.7-4.3V input .
